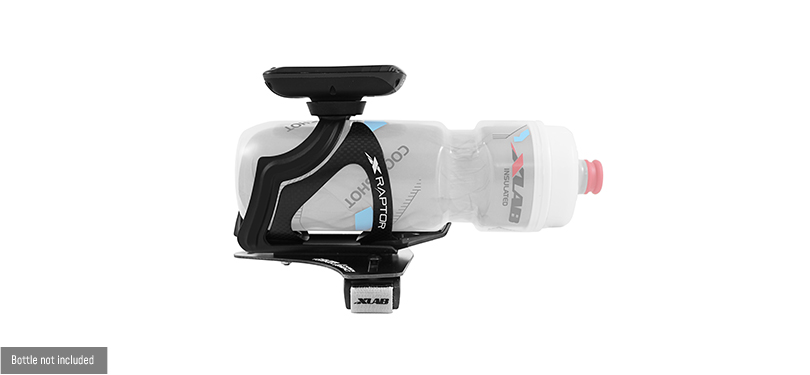

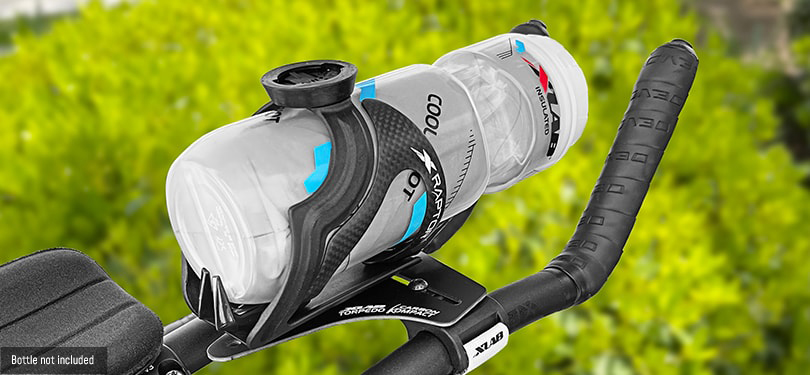

Lightweight Carbon Between-the-Arms Hydration System. The perfect combination of simplicity and performance.
- INCLUDES: High-Modulus Carbon Aerobar Mount, Carbon Cage and Computer Mount.
- SecureClick™ BRACKETS: Brackets install quickly with a ‘click.’ Velcro™ straps securely attach the system to your aerobars for worry-free installation.
- Easy Computer Viewing: Garmin®️ and Wahoo®️ compatible computer mount sits above your bottle giving you an unobstructive view of your computer.
- MEGADJUST™ MOUNT: Fits the widest range of aerobar widths of any front hydration system available: 70 mm – 150 mm.
- Hybrid Carbon Fiber Cage: Cage provides a full 6 lb of bottle retention.
- Fits most standard shaped water bottles. For the most secure fit, use a bottle with a consistent, deep neck groove.
- Also available in aluminum mounting plate and nylon composite cage: TORPEDO KOMPACT 125 LITE.
Torpedo Kompact 500 Lite Features
Complete System
- Complete System - just add bottle.
No-Fuss Installation, Comes Fully Assembled
- Forget using zip-ties, rubber bands, or tape to attach your bottle, our SecureClick™ BRACKETS quickly and easily ‘click’ onto your aerobars, providing a secure fit and eliminating rattling and shifting.
- MEGADJUST™ means the widest adjustment range available, fitting aerobars 70 mm-150 mm (center-to-center) apart.
- Have wider bars? Need to fit aerobar extension larger than the industry standard 22.2 mm? We can make custom brackets to fit aerobar extensions set wider than 160 mm and diameters up to 27 mm, check out our custom SecureClick™ BRACKETS page for details!
Data Right Where You Need It
- Over-the-bottle computer mount positions your computer exactly where you need it for easy viewing. Comes compatible with Garmin®️ and Wahoo®️ quarter turn computers. Use a different computer? Check out our TORPEDO COMPUTER ADAPTER KIT to see additional computer mount options. (also check the compatibility tab for fit specifics).

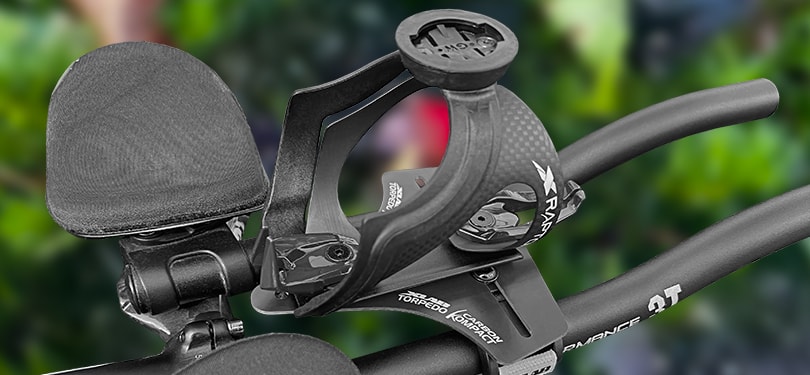

Rear Offset Design
- The short, compact design easily clears tight aerobars, providing a more comfortable hand position.
- Reversible design allows you to choose between removing the bottle towards or away from your body.
- Perfect for shorter aerobars – rear offset design moves bottle weight over stem and doesn’t require a significant amount of space from your aerobars.
- Improves bike handling compared to systems that load weight onto aerobars.
Exclusive KOMPACT 500 Series Features
RAPTOR CAGE- Our lightest cage.
- Nylon Composite Talons can be swapped out to color match your bike. Want to see more? Check out our talons page.
- 16-layer, high-strength unidirectional carbon.
- Kompact plate requires 80 mm less cockpit space than TORPEDO VERSA models.
Highest Bottle Grip of TORPEDO KOMPACT Series
- Carbon anti-launch design increases grip force to 6 lb, perfect for rough road conditions.
Capacity
Fits most standard shaped water bottles. For the most secure fit, use a bottle with a consistent, deep neck groove.
Colors
Black Cage, Black Talons. Want another cage color? Check out our talons page.
Adjustment Range
70 mm-150 mm (center-to-center.) Have wider bars? We can make custom brackets to fit aerobar extensions set wider than 160 mm, check out our custom SecureClick™ BRACKETS page for details!
Aerobar Diameter
22.2 mm diameter. Have larger aerobar extensions? We make custom brackets to fit aerobar extensions up to 27 mm, check out our custom SecureClick™ BRACKETS page for details!
Weight
154.5g (without bottle or computer)
Length
145 mm / 5.7 in
Bottle Grip Force
6 lb
Construction
- KOMPACT plate: 16-layer unidirectional carbon fiber
- RAPTOR CAGE: Cage Chassis: Unidirectional carbon fiber wrapped in 3K carbon weave. Talons: Nylon Composite.
- SecureClick™ BRACKETS: Nylon Matrix Composite.
- XKV STRAPS: with non-slip coating and Velcro closures.
Warranty
3-Year Limited Warranty.
Computers
The following computers and multisport watches are compatible with the Garmin® and Wahoo® mount on the system:Garmin®:
- Garmin® Edge Series
- Elemnt
- Elemnt Bolt
- Elemnt Mini
- Karoo 2 (must purchased Karoo 2 Quarter-Turn Mounting Adapter from Hammerhead®)
The following computers will fit if separate Polar® or Strap-mounted adapters are purchased:
Polar®:
- V650
- M460
- Strada Wireless
- Stealth GPS
- Joule
- Joule GPS
- Joule – 1st generation
- PowerTap LYC
- Cyclometer Wireless
- Cycle Trainer 2.0
Download the Torpedo Kompact 500 Installation Instructions.
Torpedo Computer Adapter
Modify your KOMPACT 125 to mount more than just Garmin® & Wahoo® computers and watches! Switch out the mount insert for a Polar or Universal strap-mounted bike computers such as Cateye® or Sigma®.
CUSTOM SECURECLICK™ BRACKETS
Have wider bars? Need to fit aerobar extension larger than the industry standard 22.2 mm? We can make custom brackets to fit aerobar extensions set wider than 160 mm and diameters up to 27 mm, check out our custom SecureClick™ BRACKETS page for details!
